Easy Save

Introduction

livrable 1 contains the first functional version of EasySave, as specified by ProSoft.

This version initiates the development of a .NET Core console application for managing backup tasks.

Prerequisites

  1. Installation process
  • Clone the livrable-1 branch and open the project with Visual Studio 2022.
  • Make sure you have installed .NET Core 6.0.
  1. Software dependencies
  • .NET Core 6.0
  • Visual Studio 2022

Execute Easy Save

Windows

Run EasySave.exe in directory ../G4-FISA-24/EasySave-G4-FISA-24/EasySave/bin/Debug/net6.0/EasySave.exe.

Linux

Run ./EasySave after publishing from visual studio.

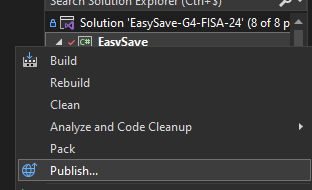

Publishing EasySave

alt text

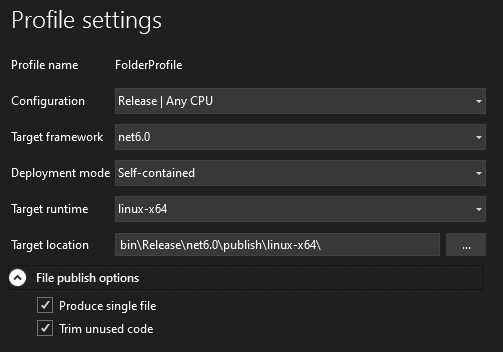

You need to specify the 'Target runtime' according to the operating system.

alt text

Tests

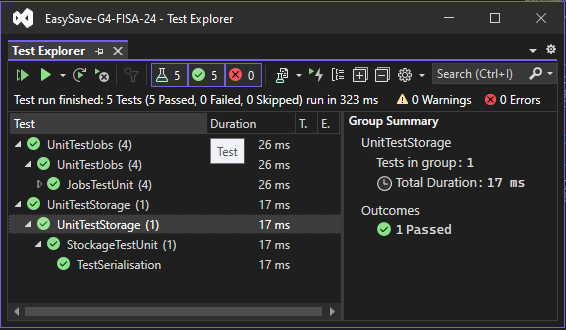

Open the Test Explorer in Visual Studio and run the unit tests.

alt text

alt text

All tests are tested during the CI/CD phase, but it's best to run the tests before pushing.

Latest versions

Please consult the "releases" tab to access the latest version of livrable 1 (Pipelines -> Releases):

https://dev.azure.com/faikmehmeti/G4-FISA-24/_release?_a=releases&view=mine&definitionId=1

Features

  • Sequential backup
  • Daily logs
  • Status logsv
  • Select language
  • List jobs
  • Load job configuration
  • Create a job
  • Delete a job
  • Launch jobs

Console application entry point

using View = EasySave.Views.View;
namespace EasySave // Note: actual namespace depends on the project name.
{
    /// <summary>
    /// Application entry point
    /// </summary>
    internal class Program
    {
        [STAThread]
        static void Main(string[] args)
        {
            View pView = new View();
            //Lance le program principale
            pView.Run();
        }
    }
}

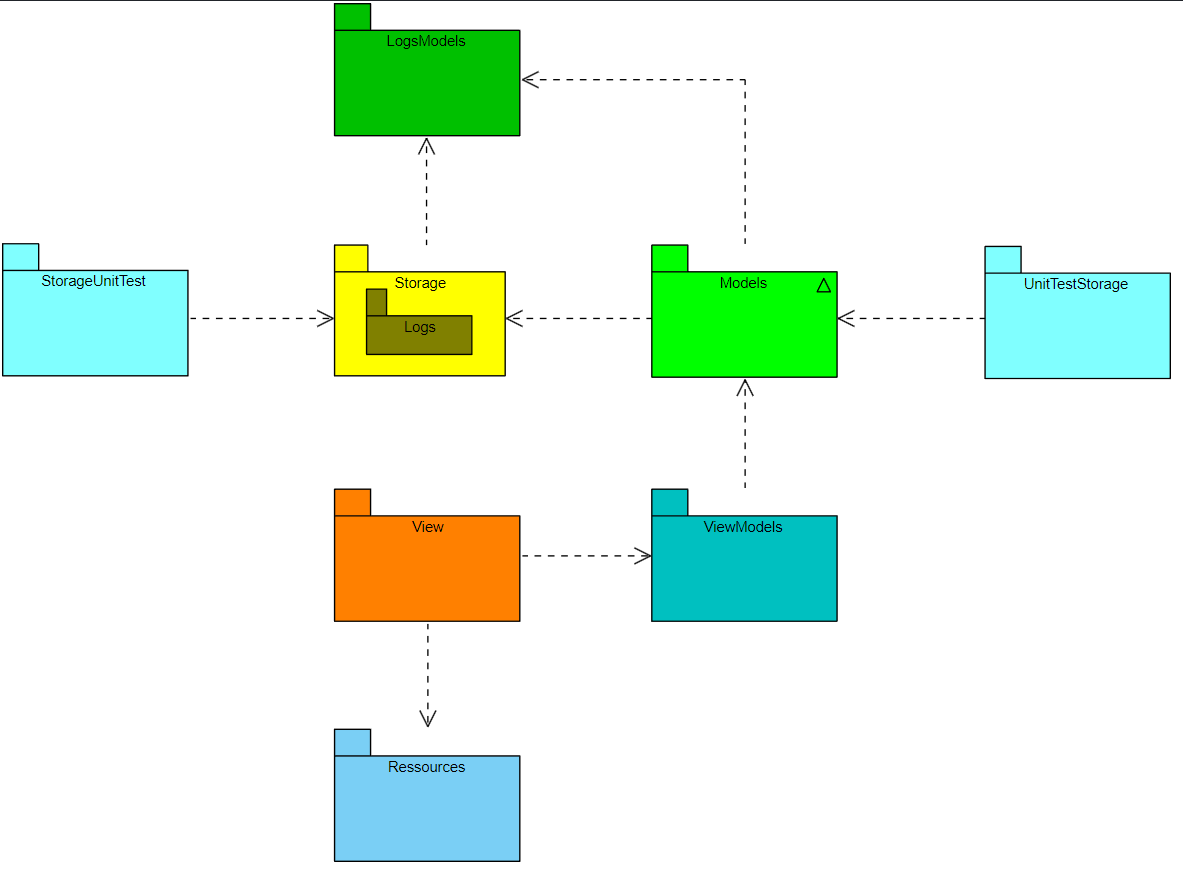

Architecture

alt text

The architecture is based on an MVVM model with :

Log System

Default location of CJobManager and CSettings and location of log model stored using the logging classes in the Logs package.

The current location of event logs is stored in the Logs folder.

The current location of user settings is stored in the root directory Settings.json.

The location of backup jobs is stored in the Jobs folder.

Logs with names formatted as Logs - 2024-02-15 are daily logs.

The Logs.json file is the log status.

Continuous Integration (CI) and Continuous Deployment (CD) processes using Azure DevOps

Continuous Integration configuration

Triggering pipelines

Continuous integration pipelines are configured to trigger automatically when a pull request is made to the main branch. Continuous integration validation is a prerequisite for any code merge.

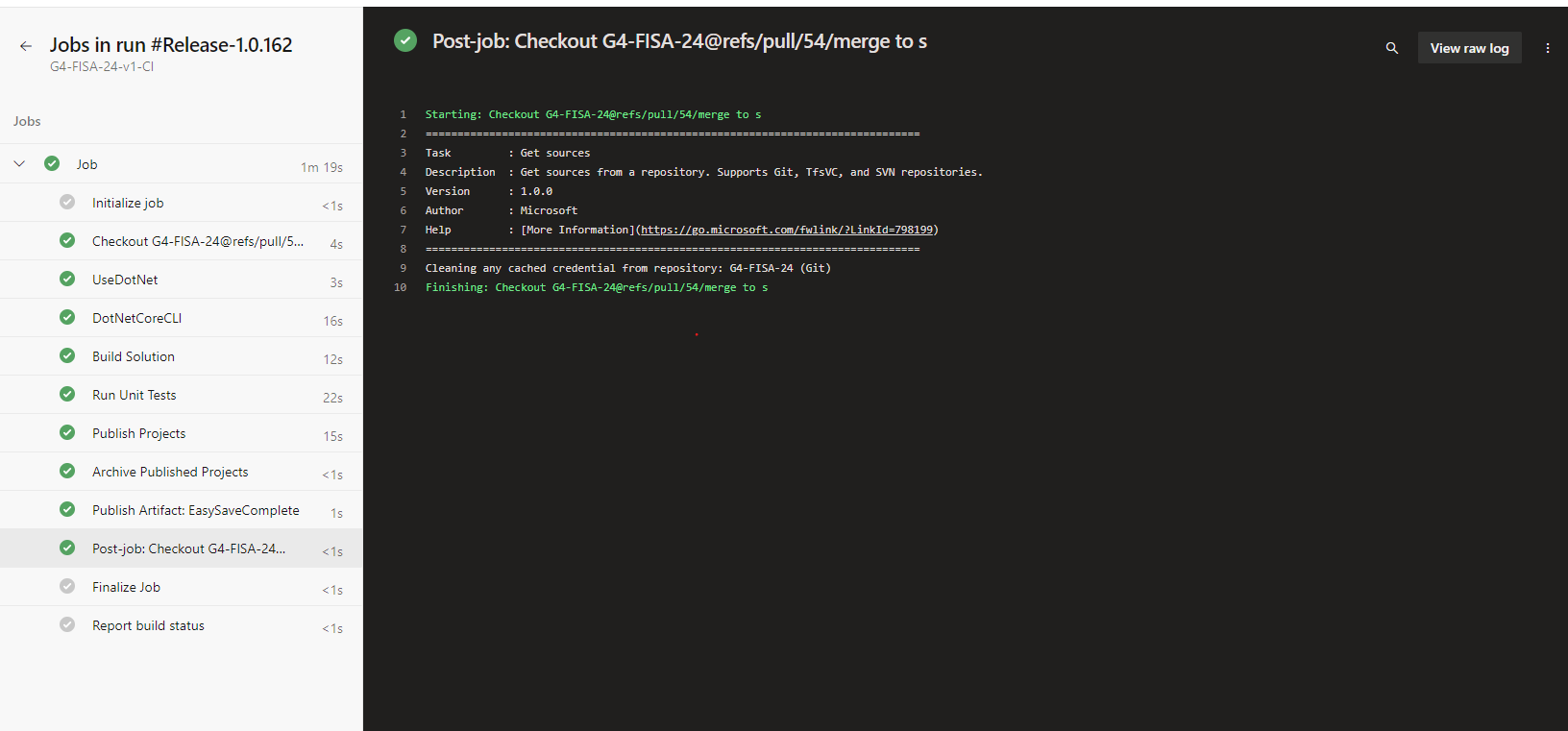

Integration process

  • Build: Compilation of source code into an executable or deployable package.
  • Automated Testing: Execution of tests to verify code quality and functionality.
  • Release Publishing: Creation and storage of release artifacts in Azure DevOps.

alt text

Continuous Deployment Management

Although continuous integration is automated, continuous deployment currently requires manual intervention.

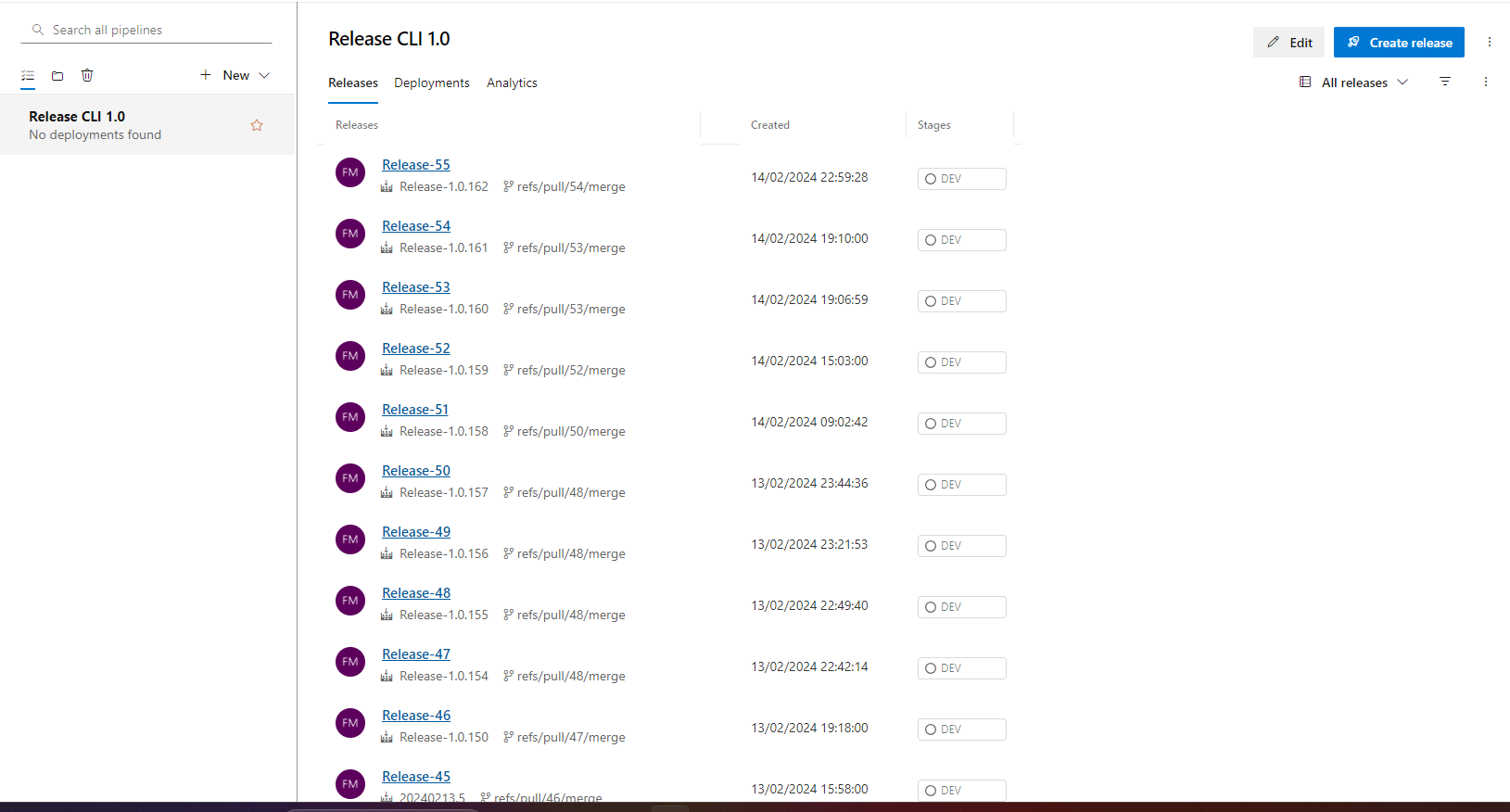

Access to Releases

https://dev.azure.com/faikmehmeti/G4-FISA-24/_release

alt text

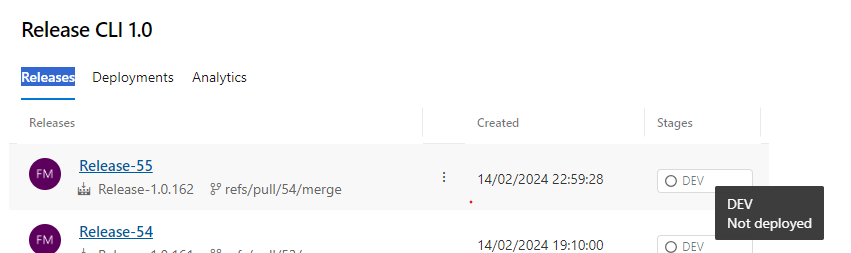

Here you can track the deployment status of each release.

This link allows you to follow the deployment status for each release.

alt text

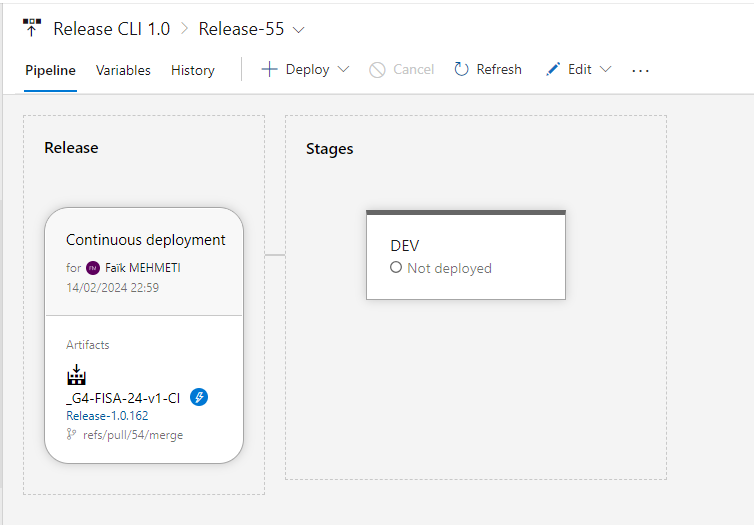

Deployment Management

By selecting a release, you will be taken to a page where continuous deployment can be managed. Currently, deployments must be performed manually for each stage.

alt text
